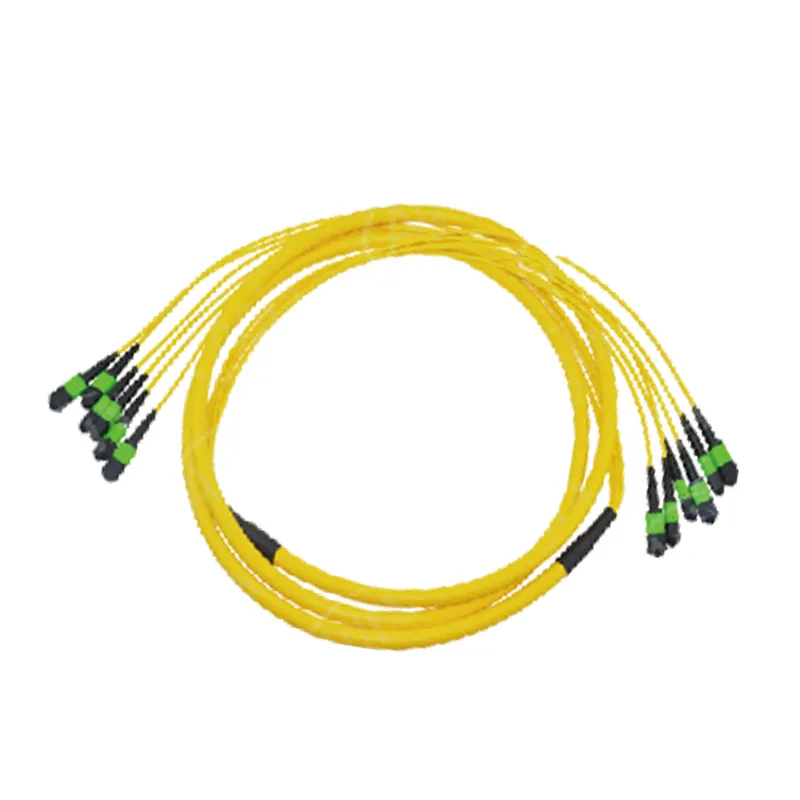

Etern MPO Pre-terminated optical fiber is beneficial for improving the infrastructure environment of data center and optical systems. Connecting via crossing through MDA, HDA and EDA interzone module box, the high-efficiency plug and play frame greatly decreases the cost of initial installation and dailly maintenance.
Etern pre-terminated optical fiebr adopted the high quality fiber optic cable and MPO assembly, has the features of low insertion loss and high return loss which can fit well with high-speed network with strict requirements.
Features
- Provide 12 to 144 core optical diber connection
- 4,8,12,24 core MPO connector, decrease the possibility of breakdown and reduce wiring space
- Can smoothly upgrade from 10G to 40G/100G network transmission, and also support 100G delay transmission
- Can choose from a variety of fiber scales according to customer’s requirements
Applications
- Backbone array fiber optic cable
- Optical switch interface connection
- Data center wiring
Performance Specification
|
Optical Fiber Type |
Single Mode |
Multi-mode |
||
|
Insertion Loss |
Typ.(dB) |
0.35 |
0.35 |
|
|
Max.(dB) |
0.75 |
0.75 |
||
|
Low Insertion Loss |
Typ.(dB) |
0.1 |
0.1 |
|
|
Max.(dB) |
0.35 |
0.35 |
||
|
Return Loss |
≥60（APC） |
≥200（PC） |
||
|
≥50（PC） |
||||
|
Male/Female Connector |
Male Connector: With pin |
Female connector:Without pin |
||
|
Durability（dB） |
≤0.2 500times |
|||
|
Operation Temp.（℃） |
-20 - +70 |
|||
|
Test Wavelength（nm） |
1310 |
850 |
||
Ordering Information
MPO/MTP跳线
