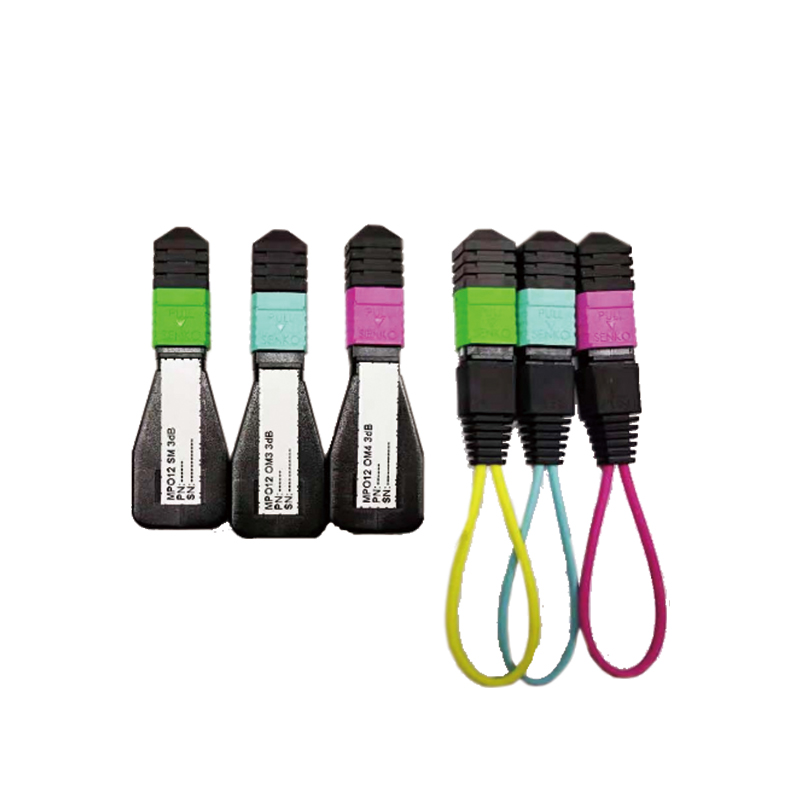

ETERN MPO circle testing line is used to test the transmitting power capacity and reception sensitivity of network equipments.
Features
- 8, 16, 24, 32 avaliable
- Typical insertion loss type and low insertion loss type avaliable
- Single type APC and multi mode PC avaliable
- Insertion loss value can be decided in advance
- Customized fiber sequence avaliable
Performance Specification
|
Technical Specification
|
|||
|
Insertion Loss Accuracy |
±1dB(Range：1-10dB) |
±10% A (Range：11-20dB) |
|
|
Insertion Loss |
1-20dB |
||
|
Return Loss（dB） |
≥60（APC） |
≥20（PC） |
|
|
Male/Female Connector |
Male Connector:With pin |
Female Connector: With |
|
|
Durability（dB） |
≤0.2 500times connection |
||
|
Operating Temp.（℃） |
-20 - +70 |
||
|
Testing Wavelength（nm） |
1310 |
850 |
|
Ordering Information
|
Ordering Information |
Example:YD-MPO-4-8-F-15-K |
||||
|
Item |
Enclosure Color |
1.SM8F |
Pin Type |
Insertion Loss |
Channel |
|
YD-MPO |
1.Green Single Mode OS2 |
2.MM8F |
M. Male |
1 1dB |
K:Customized |
|
|
2.Gray OM1 |
3.SM8F |
F. Female |
- - |
|
|
|
3.Black OM2 |
4.MM16F |
|
20 20dB |
|
|
|
4.Aqua blue OM3 |
5.SM24F |
|
|
|
|
|
5.Purple OM4 |
6.MM24F |
|
|
|
|
|
|
7.SM32F |
|
|
|
|
|
|
8.MM32F |
|
|
|
