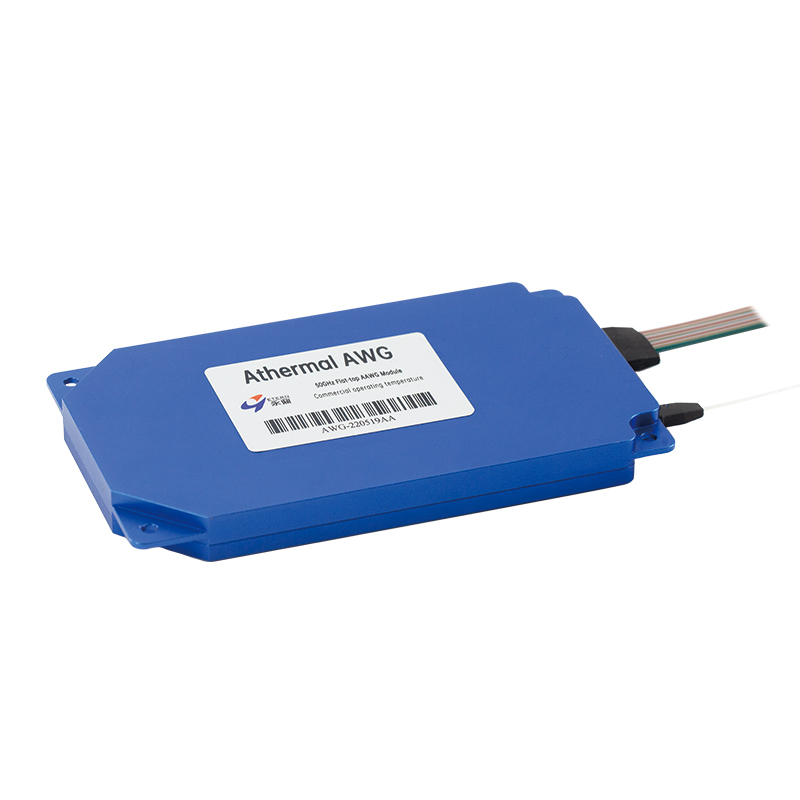

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 50GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
Features
- Athermal Design Over Operating Temperature Range
- Compact Size
- High Stability and Reliability
- Low Insertion Loss, High Isolation
Applications
- WDM Transmission
- Metro and Long-haul Network
Performance Specification
Note: 1. Tested with connectors.
Typical AWG Spectrum
Mechanical Dimensions (Unit: mm)
Ordering Information
