ETERN Optoelectronics's CWDM (Coarse Wavelength Division Multiplexing) MUX/DEMUX (Multiplexer/Demultiplexer) is a multi-channel CWDM device designed for cost-effective multi-wavelength CWDM transmission network applications. It is based on the Thin Film Filter (TFF) technology and operates at 20nm channel spacing ITU Grid CWDM wavelengths from 1270nm to 1610nm.

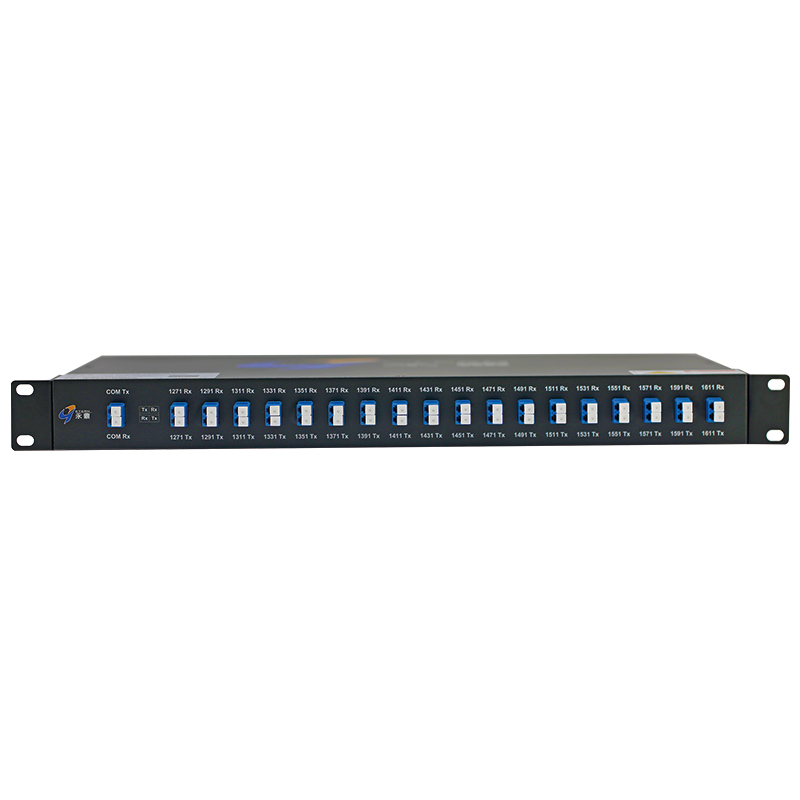

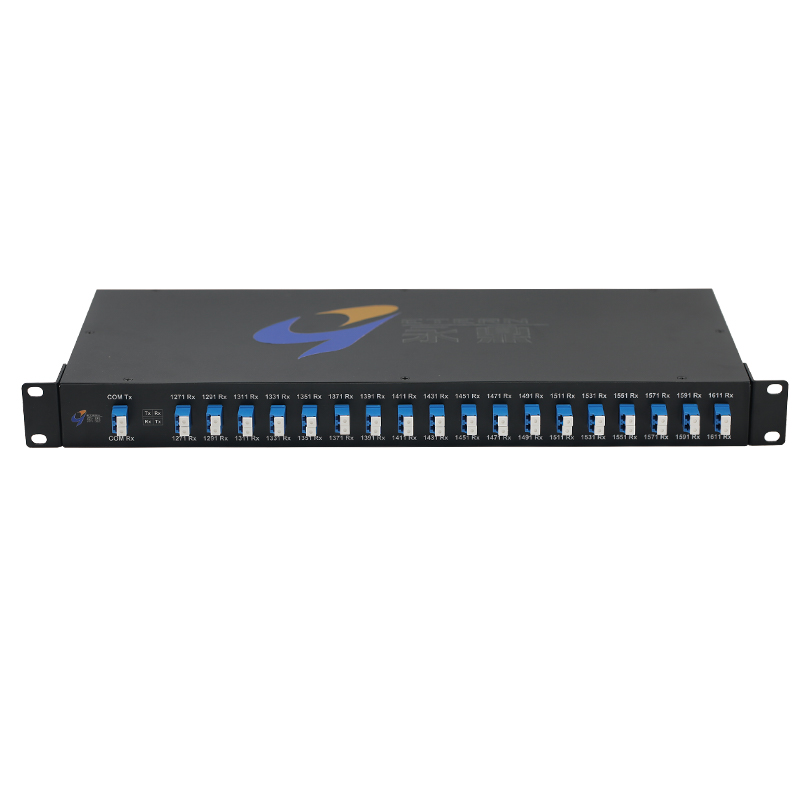

ETERN Optoelectronics provides a series of customized CWDM MUX/DEMUX devices packaged in metal LGX box, or rack mount to meet different requirements on port configuration (2 to 18 channels, 1310nm/upgrade/monitoring ports available), operating wavelength, package type, fiber type, fiber length, input connector, and output connector.
Performance Specification
| Parameter | Value | |
| Center Wavelength | 1271, 1291, 1311 … 1571, 1591, 1611 | |
| Channel Spacing | 20nm | |
| Channel Passband | ±6.5nm | |
| Insertion Loss, Per Channel | ≤3.5dB | |
| Insertion Loss @ 1% Mon | ≤24dB | |
| Adjacent Channel Isolation | ≥30dB | |
| Non-adjacent Channel Isolation | ≥40dB | |
| Passband Ripple | ≤0.5dB | |
| Directivity | ≥50dB | |
| Return Loss | ≥45dB | |
| PDL | ≤0.3dB | |
| PMD | ≤0.1ps | |
| Power Handling | ≤500mW | |
| Operating Temperature | -10~70 | |
| Storage Temperature | -40 to 85 | |
| Dimensions | 44mmx481.8mmx261.2mm |
Order Information
|
CWDM- |
¨ |
¨ |
¨ |
¨ |
¨ |
¨ |
¨ |
|
CWDM |
Channel |
Initial Channel |
Fiber Type |
Fiber Length |
Connector |
Model |
Packaging |
|
|
|
|
|
|
|
|
|
|
02=2 Channel |
27=1271 |
1=250um SM |
00=Adapter |
1=N/A |
M=Mux |
M=Module |
|
|
04=4 Channel |
29=1291 |
2=900um SM |
05=0.5m |
2=FC/UPC |
D=Demux |
L=Socket Box |
|
|
06=6 Channel |
31=1311 |
3=2.0mm SM |
10=1.0m |
3=FC/APC |
MD= |
R=Rack mount |
|
|
08=8 Channel |
33=1331 |
4=3.0mm SM |
15=1.5m |
4=LC/UPC |
Mux&Demux |
|
|
|
12=12 Channel |
35=1351 |
|
20=2.0m |
5=LC/APC |
|
|
|
|
16=16 Channel |
37=1371 |
|
…… |
6=SC/UPC |
|
|
|
|
18=18 Channel |
…… |
|
XX= Special |
7=SC/APC |
|
|
|
|
…… |
59=1591 |
|
|
X= Special |
|
|
|
|
XX= Special |
61=1611 |
|
|
|
|
|
