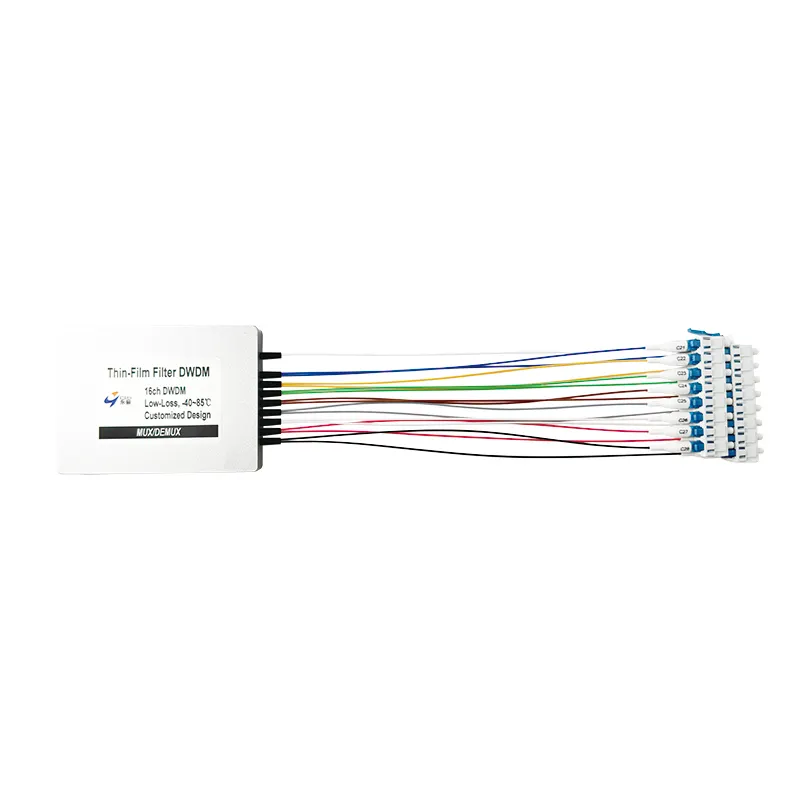

ETERN Optoelectronics's DWDM (Dense Wavelength Division Multiplexing) MUX/DEMUX (Multiplexer/Demultiplexer) is a multi-channel DWDM device designed for ITU channel spacing applications. It is based on the Thin Film Filter (TFF) technology and operates at 100GHz or 200GHz or 50GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm.
ETERN Optoelectronics provides a series of customized DWDM MUX/DEMUX devices packaged in metal LGX box, or 19-inch 1U rack mount to meet different requirements on port configuration (2 to 18 channels, 1310nm/upgrade/monitoring ports available), operating wavelength, package type, fiber type, fiber length, input connector, and output connector.
Performance Specification
| Parameter | Value | |
| Center Wavelength | C21~C60 | |
| Channel Spacing | 100GHz | |
| Channel Passband | ±0.11nm | |
| 1310 Port Passband | 1260~1360 | |
| Insertion Loss, Per Channel | ≤5.0dB | |
| Insertion Loss, 1310 Port | ≤1.0dB | |
| Insertion Loss @ 1% Mon | ≤24dB | |
| Adjacent Channel Isolation | ≥30dB | |
| Non-adjacent Channel Isolation | ≥40dB | |
| Passband Ripple | ≤0.5dB | |
| Directivity | ≥50dB | |
| Return Loss | ≥45dB | |
| PDL | ≤0.5dB | |
| PMD | ≤0.5ps | |
| Power Handling | ≤500mW | |
| Operating Temperature | -10 to 70 | |
| Storage Temperature | -40 to 85 | |
| Dimensions | 120mmx80mmx18mm |
Order Information
|
DWDM- |
¨ |
¨ |
¨ |
¨ |
¨ |
¨ |
¨ |
¨ |
|
DWDM |
Channel |
Initial Channel |
Extend Ports |
Fiber type |
Fiber Length |
Connector |
Model |
Packaging |
|
02=2 Channel 04=4 Channel 06=6 Channel 08=8 Channel 12=12 Channel |
C19=1562.23 C20=1561.42 …… XXX= Channel |
0=EXP skip 0 1=EXP skip 1 2=Other N=No EXP |
1=250um SM 2=900um SM 3=2.0mm SM 4=3.0mm SM |
00=Adapter 05=0.5m 10=1.0m 15=1.5m 20=2.0m |
1=N/A 2=FC/UPC 3=FC/APC 4=LC/UPC 5=LC/APC |
M=Mux D=Demux MD=Mux&Demux |
D=Device M=Module L=Socket Box R=Rack mount |
|
|
16=16 Channel |
number |
…… |
6=SC/UPC |
|||||
|
18=18 Channel |
XX= Special |
7=SC/APC |
||||||
|
…… |
X= Special |
|||||||
|
XX= Special |
DWDM Channel list-100GHz ITU-T
|
Code |
Frequency (THz) |
Center Wavelength(nm) |
Code |
Frequency (THz) |
Center Wavelength(nm) |
|
C17 |
191.7 |
1563.86 |
C40 |
194.0 |
1545.32 |
|
C18 |
191.8 |
1563.05 |
C41 |
194.1 |
1544.53 |
|
C19 |
191.9 |
1562.23 |
C42 |
194.2 |
1543.73 |
|
C20 |
192.0 |
1561.42 |
C43 |
194.3 |
1542.94 |
|
C21 |
192.1 |
1560.61 |
C44 |
194.4 |
1542.14 |
|
C22 |
192.2 |
1559.79 |
C45 |
194.5 |
1541.35 |
|
C23 |
192.3 |
1558.98 |
C46 |
194.6 |
1540.56 |
|
C24 |
192.4 |
1558.17 |
C47 |
194.7 |
1539.77 |
|
C25 |
192.5 |
1557.36 |
C48 |
194.8 |
1538.98 |
|
C26 |
192.6 |
1556.55 |
C49 |
194.9 |
1538.19 |
|
C27 |
192.7 |
1555.75 |
C50 |
195.0 |
1537.40 |
|
C28 |
192.8 |
1554.94 |
C51 |
195.1 |
1536.61 |
|
C29 |
192.9 |
1554.13 |
C52 |
195.2 |
1535.82 |
|
C30 |
193.0 |
1553.33 |
C53 |
195.3 |
1535.04 |
|
C31 |
193.1 |
1552.52 |
C54 |
195.4 |
1534.25 |
|
C32 |
193.2 |
1551.72 |
C55 |
195.5 |
1533.47 |
|
C33 |
193.3 |
1550.92 |
C56 |
195.6 |
1532.68 |
|
C34 |
193.4 |
1550.12 |
C57 |
195.7 |
1531.90 |
|
C35 |
193.5 |
1549.32 |
C58 |
195.8 |
1531.12 |
|
C36 |
193.6 |
1548.51 |
C59 |
195.9 |
1530.33 |
|
C37 |
193.7 |
1547.72 |
C60 |
196.0 |
1529.55 |
|
C38 |
193.8 |
1546.92 |
C61 |
196.1 |
1528.77 |
|
C39 |
193.9 |
1546.12 |
|
|
Mechanical drawing
- ABS Box
|
Parameter |
Model |
Note |
|
Dimension（mm) |
120X80X18mm |
BLACK |
