The features of the digital fiber optic repeater station
- The digital fiber optic repeater station supports chain topology, star topology, and a combination of star and chain topologies.
- The Master unit and remote unit support a one-to-many star topology, where one Master unit can be connected to at least 4 remote units in a star configuration.
- One remote unit supports chain connections of at least 6 additional remote units.
- Optical fiber is used for transmission between the RF Master unit and the remote unit, with a maximum transmission distance of over 10 km.
- Supports multi-operator co-building and sharing.

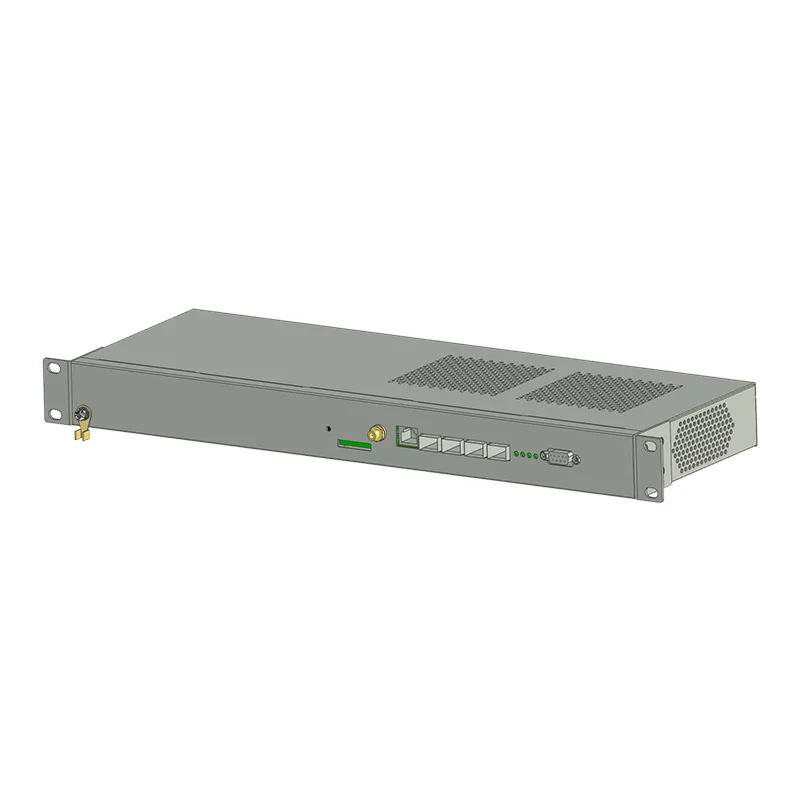

Master Unit Specifications
|
No. |
Item |
Technical Specifications |
|
Select three of the following frequency bands |
||
|
1 |
Supported Frequency Bands (Customizable) |
5G:N78/N41/N79/N71/N28/N1/N3/N7/N8 |
|
4G:B1/B3/B5/B7/B8/B12/B13/B20/B26/B29/B38/B28/B40/B41 |
||
|
2 |
Supported Bandwidth (Customizable) |
5M/10M/15M/20M/55M/100M |
|
3 |
Channel Capacity |
1T1R+1T1R+1T1R |
|
4 |
RF Input Port Quantity |
3 |
|
5 |
Maximum Output Power |
10dBm |
|
6 |
System Latency |
< 8 µs |
|
7 |
Input Standing Wave Ratio |
≤ 1.5 |
|
8 |
Optical Ports Quantity |
4 |
|
9 |
Local Alarms |
1. LED indicator |
|
10 |
Power Input |
90 ~ 265V AC, 50 ~ 60 Hz |
|
11 |
Power Consumption |
≤ 40 w |
|
12 |
Connectors |
RF: SMA-F/4.3-10-F/N-F; Fiber Optic: LC/LC |
|
13 |
Dimensions |
482mmX155mmX44mm (1U) |
|
14 |
Weight |
≤2kg |
|
15 |
Protection Class |
IP20 |
|
16 |
Monitoring |
Local: ETH |
|
17 |
MTBF |
≥50000H |
|
18 |
Operating Temperature |
-20 ~ +40 °C |
Remote Distribution Unit Specifications
|
No. |
Item |
Technical Specifications |
|
Select three of the following frequency bands |
||
|
1 |
Supported Frequency Bands (Customizable) |
5G:N78/N41/N79/N71/N28/N1/N3/N7/N8 4G:B1/B3/B5/B7/B8/B12/B13/B20/B26/B29/B38/B28/B40/B41 |
|
2 |
Supported Bandwidth (Customizable) |
5M/10M/15M/20M/55M/100M |
|
3 |
Channel Capacity |
1T1R+1T1R+1T1R |
|
4 |
Maximum Output Power (Customizable)/Channel |
46±1dBm |
|
5 |
Maximum Gain |
55±2dB |
|
6 |
Gain Adjustment Range/Step Size |
≥30dB/1dB |
|
7 |
Gain Adjustment Error |
Gain error ≤1dB when gain is 0-20dB; gain error ≤1.5dB when gain is 21-30dB |
|
8 |
Noise Figure |
≤5dB |
|
9 |
ALC |
When input increases by 10dB at maximum power, output power change is less than 2dB; when input signal level exceeds 10dB, output power remains within ±2dB of maximum output power or output is turned off. Control range ≥20dB. |
|
10 |
In-band Ripple (Effective Bandwidth) |
≤3dB |
|
11 |
VSWR |
≤1.5 |
|
12 |
Delay |
≤9μs |
|
13 |
Frequency Error |
≤±0.01ppm |
|
14 |
EVM |
≤3.5%， |
|
15 |
ACLR |
Uplink ≤-36dBc, Downlink ≤-45dBc |
|
16 |
Dimensions |
468mm*520mm*194mm |
|
17 |
Weight |
≤30 kg |
|
18 |
Protection Class |
IP65 |
|
19 |
Monitoring |
Local: ETH |
|
20 |
MTBF |
≥50000h |
|
21 |
Power Input |
90 ~ 265V AC, 50 ~ 60 Hz |
|
22 |
Power Consumption |
≤600 W |
|
23 |
Operating Temperature |
-25℃～+55℃ |
|
24 |
Overall Efficiency |
≥20% |
|
25 |
Networking Mode |
Star, Chain, Hybrid of Star and Chain |
