Micro-Optics: Switch, Circulator, Isolator and Hybrid Components
ETERN Optoelectronics' micro-optics product portfolio includes relay-based mechanical optical switches, optical circulators, optical isolators and hybrid integrated components such as IWDM and ITPD. These components are designed for customer optical cards and modules, with customizable optical functions, package design, PIN definition and driving modes.
Switch / Circulator / Isolator / Hybrid Components
Designed for compact optical cards and customized modules, ETERN micro-optics components support multiple switching formats, optical routing functions and hybrid passive integration. Mechanical optical switch options are based on relay structures, while circulators, isolators and integrated hybrid components can be configured for different optical system requirements.

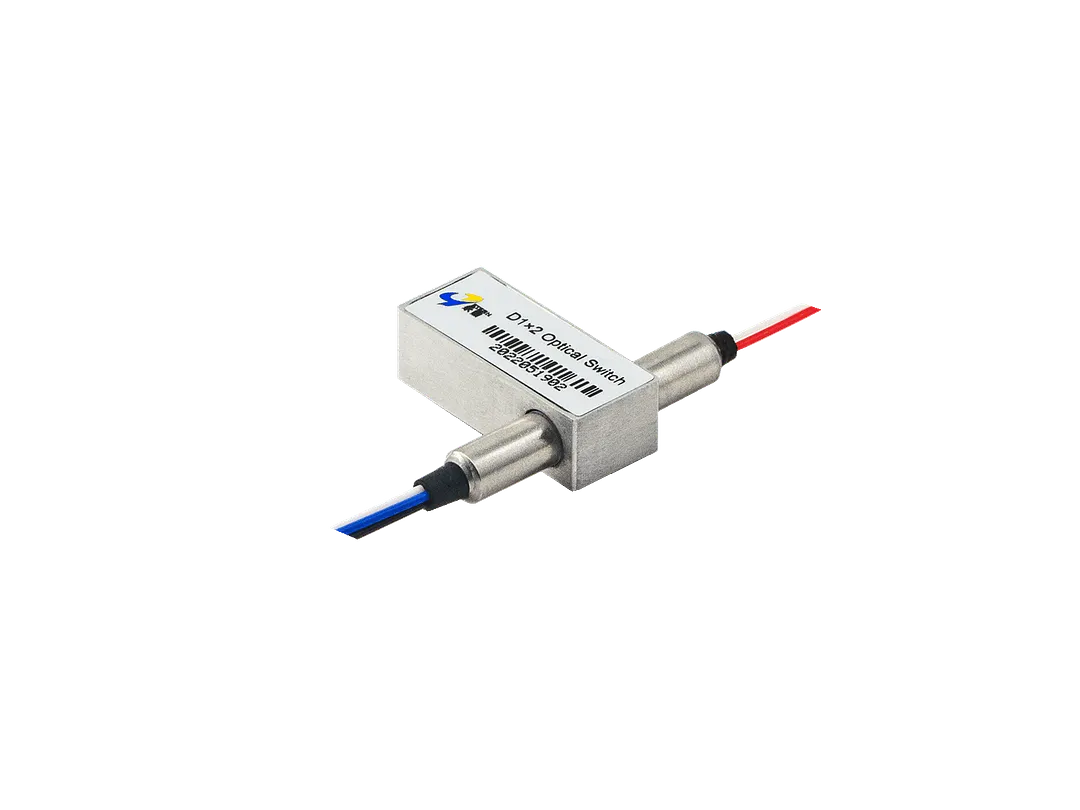

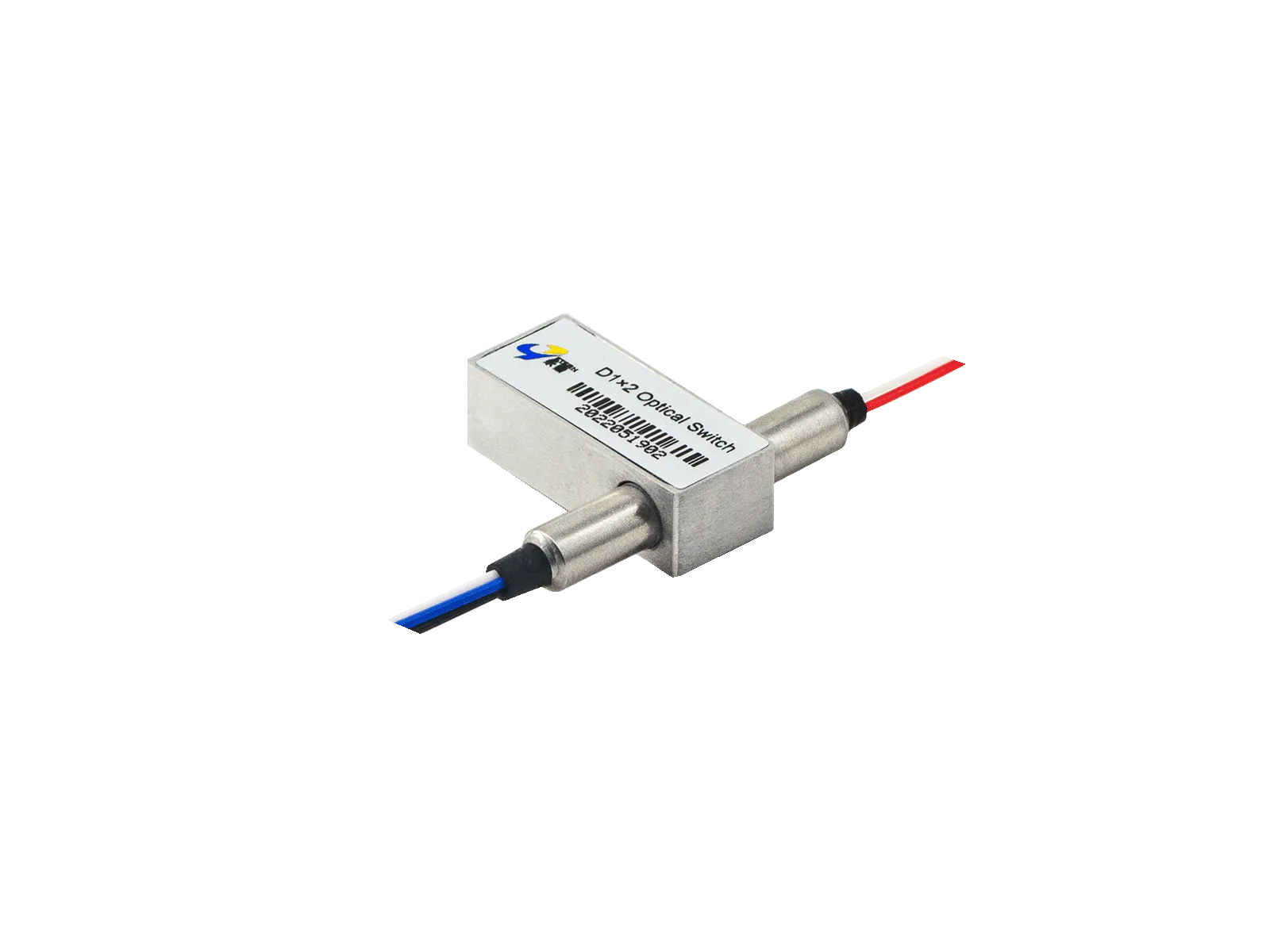

- Relay-based mechanical optical switches support 1x1, 1x2, 2x2B, 2x2F or customized optical functions.
- Available switch formats include 1x2, 2x2 bypass, 2x2 full, dual 1x2, dual 2x2 bypass, dual 2x2 full, mini 1x2 and mini 2x2 bypass.
- Device package, PIN definition, 3.3V or 5V driving, latching or non-latching modes can be customized.
- Circulator options include 3-port and 4-port designs, 1310/1550 nm wavelength options, and standard or mini sizes.
- Isolators are available in single-stage or dual-stage versions, with standard or mini size options.
- Hybrid integrated components include IWDM and ITPD for customer optical cards and modules.
Looking for Customized Micro-Optics Components?
Whether you need mechanical optical switches, circulators, isolators, IWDM, ITPD or other customized hybrid micro-optics components, our engineering team can support package design, PIN definition, driving mode and optical function customization for your optical card or module. You can also explore our Optical Passive Components category for WDM, optical protection, micro-optics, MEMS and other customized passive optical solutions.
