FIBER-OPTIC SWITCH(ULTRA-MINI 1X1/1X2/2X2BYPASS)
1 / 1
szetern

FIBER-OPTIC SWITCH(ULTRA-MINI 1X1/1X2/2X2BYPASS)

ULTRA-MINI 1X1/1X2/2X2BYPASS

$0.00
0 sold
Qty

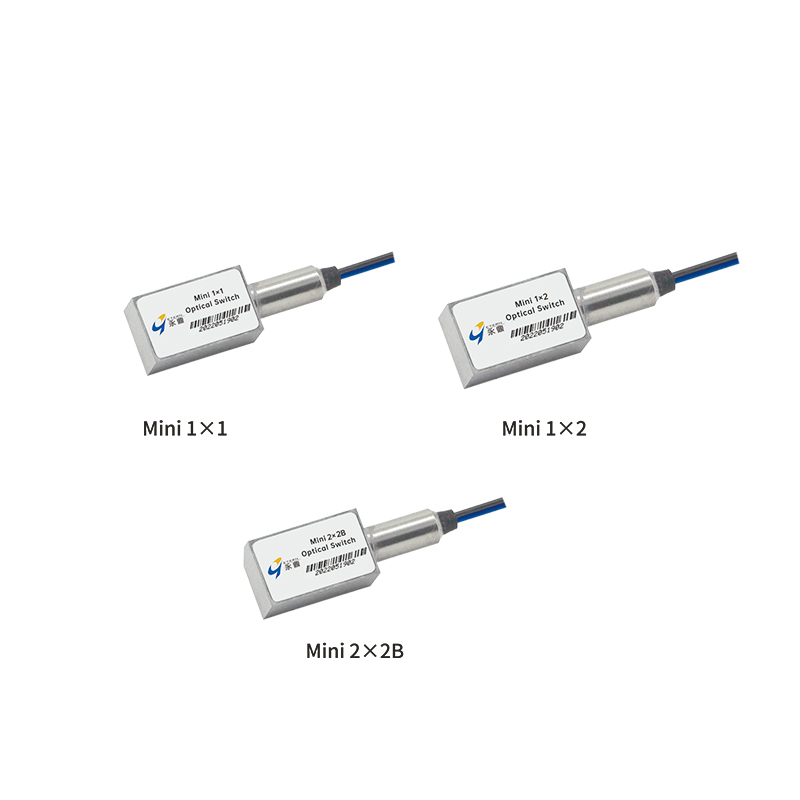

ETERN fiber-optic switches are designed based on refraction optical principle which reduces moving part position sensitivity. It features excellent mechanical and optical performance and unify different switch configuration of ultra-mini 1x1, 1x2 and 2x2 bypass onto the same compact package. The products are Telcordia GR-1073-CORE qualified, and RoHS complaint.

Features

  • Low Insertion Loss & Cross Talk
  • Wide Operating Wavelength Range
  • Bi-directional


Applications

  • Network Protection & Restoration
  • Channel Blocking
  • Module & System Integration
  • Instrumentation
  • Configurable OADM


Performance Specification


Note:

1.Measured without connectors; IL will be 0.3dB worse and RL will be 5dB lower with connectors

2.Measured with LED or VSCEL optical source for Multi-mode type

Mechanical Dimensions (Unit: mm)



Electrical PINs Definition


Function Diagram

Ordering Information
