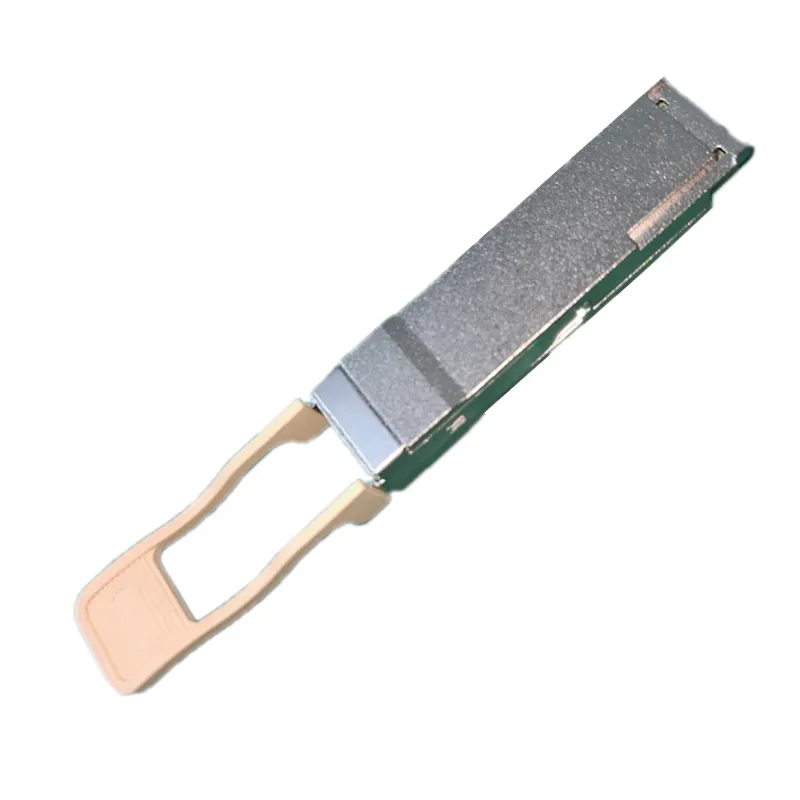

ETERN Optoelectronics 200G QSFP56 SR4 100m Optical Transceiver
The FLS200C010S is a high-density, hot-pluggable 200Gb/s QSFP56 SR4 optical transceiver designed for short-reach communication over multimode fiber (MMF).
This module integrates four parallel lanes, each operating at a baud rate of 26.5625GBd using 4-level Pulse Amplitude Modulation (PAM4). It is capable of transmitting data up to 100m on OM4 fiber or 70m on OM3 fiber with FEC enabled. Utilizing a high-reliability 850nm VCSEL transmitter and PIN receiver array, the FLS200C010S provides a power-efficient solution (under 4W) for 200GBASE-SR4 Ethernet links, ensuring stable performance in enterprise and cloud data center environments.
Key Technical Highlights
- PAM4 Modulation: High-efficiency 4x50Gbps PAM4 technology for maximum throughput over parallel fiber.
- Energy Efficient: Ultra-low power consumption of less than 4W, optimizing thermal management in high-density racks.
- Versatile Reach: Supports up to 100m on OM4 MMF, providing flexibility for spine-leaf and ToR cabling.
- Hot-Pluggable QSFP56: Compliant with QSFP56 MSA and IEEE 802.3cd 200GBASE-SR4 standards for universal compatibility.
Applications
Optimized for 200GBASE-SR4 Ethernet, high-performance computing (HPC) clusters, and high-speed storage area networks using MPO-8 connectivity.
Product List & Detailed Specifications
For technical datasheets or bulk inquiries, please contact sales@szetern.com.
