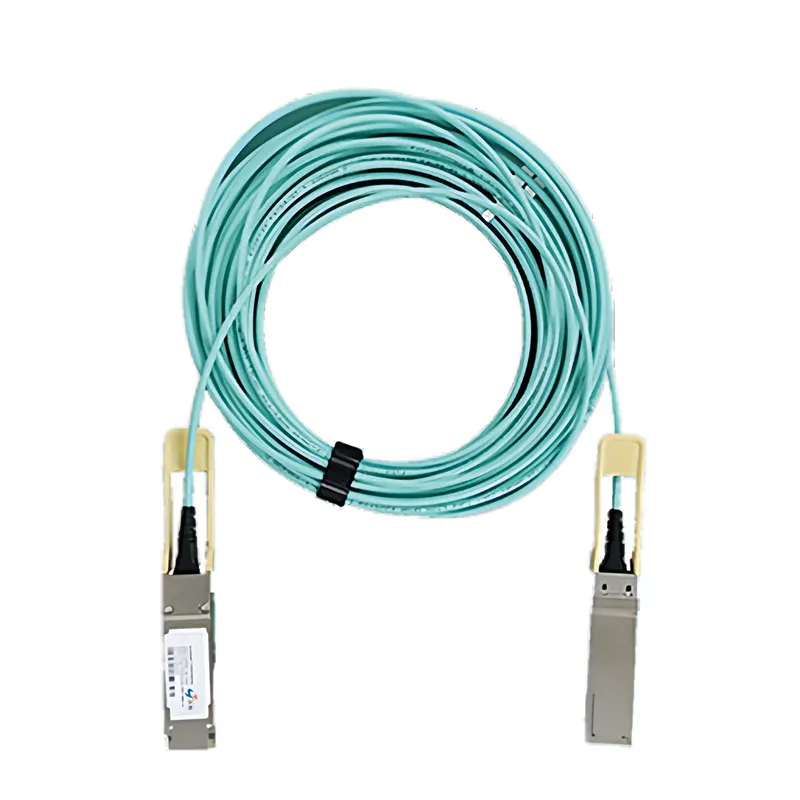

ETERN Optoelectronics 200G QSFP56 Active Optical Cable (AOC)
The FLS200C003S-Lxx is a hot-pluggable 200Gb/s QSFP56 Active Optical Cable (AOC) designed for high-speed, short-reach multimode fiber interconnects.
Engineered for next-generation data centers, this 200G AOC integrates four parallel lanes, each operating at 26.5625GBd with 4-level Pulse Amplitude Modulation (PAM4). By utilizing 850nm VCSEL and PIN technology, it delivers 200Gb/s aggregate bandwidth over distances up to 30m. The FLS200C003S-Lxx offers a flexible and lightweight alternative to bulky copper cables, providing superior signal integrity and lower latency for 200GBASE-SR4 Ethernet applications.
Key Technical Highlights
- Advanced PAM4 Modulation: Supports 4x50Gbps lanes using 26.5625GBd PAM4 technology for enhanced spectral efficiency.
- Low Power Consumption: Highly integrated design ensures a total power consumption of less than 4W per module end.
- Short-Reach Optimized: Designed for reliable 30m interconnects over multimode fiber, ideal for rack-to-rack links.
- Hot-Pluggable Form Factor: Compliant with QSFP56 MSA standards for high-density, switch-to-switch connectivity.
Applications
An essential solution for 200GBASE-SR4 Ethernet, InfiniBand HDR interconnects, and high-performance computing (HPC) clusters requiring flexible, high-density cabling.
Product List & Detailed Specifications
For technical datasheets or bulk inquiries, please contact sales@szetern.com.
