100G QSFP28 SWDM4 100m Optical Transceiver

ETERN Optoelectronics 100G QSFP28 SWDM4 100m Optical Transceiver

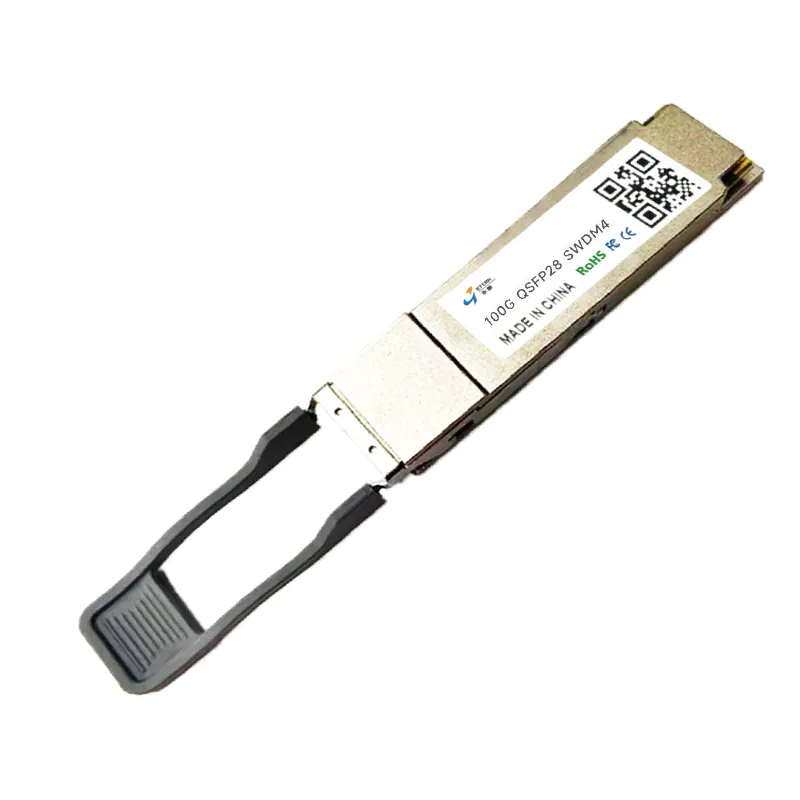

The ETERN Optoelectronics FLS100C011S is a hot-pluggable QSFP28 SWDM4 transceiver designed for 100G Ethernet links over duplex multimode fiber. By leveraging 4x25Gb/s VCSEL-based transmitters across the 850-940nm wavelength range, this module achieves a maximum link length of 150m on OM5 or 100m on OM4 fiber. It integrates advanced digital diagnostics via an I2C interface as specified by the QSFP28 MSA.

Key Technical Highlights

• Duplex LC Optimization: Utilizes a standard duplex LC connector with only two fiber cores, significantly reducing infrastructure costs compared to MPO cabling.
• SWDM Technology: Employs Shortwavelength Division Multiplexing to multiplex four 25.78Gbps lanes within the 850-940nm spectrum.
• Robust Compatibility: Fully compliant with both QSFP28 MSA and SWDM MSA standards for reliable multi-vendor interoperability.
• Efficient Performance: Features high-quality VCSEL transmitters and PIN receivers, maintaining power consumption under 3.5W.

Applications

Ideal for 100G Ethernet connectivity in newly built finance datacenters or for smooth capacity expansions within existing SWDM4 architectural structures, ensuring high bandwidth with minimal fiber complexity.

Product List & Detailed Specifications

For technical datasheets or bulk inquiries, please contact sales@szetern.com.
