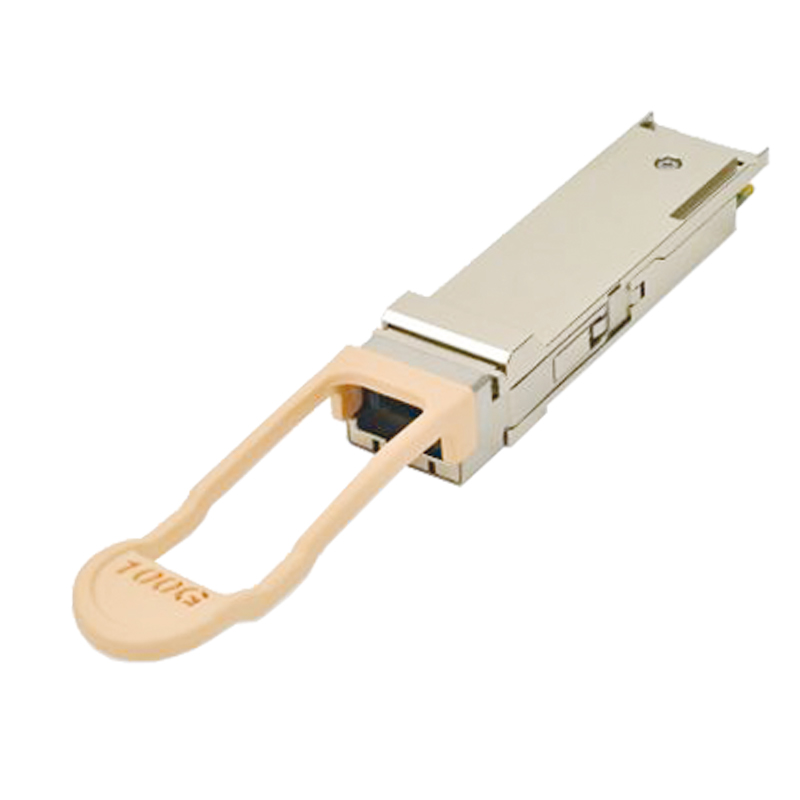

100G QSFP28 SR4 100m Optical Transceiver

ETERN Optoelectronics 100G QSFP28 SR4 100m Optical Transceiver

The FLS100C010S is a high-density 100G QSFP28 SR4 optical transceiver from ETERN Optoelectronics, designed for short-reach data communication. It supports link lengths of up to 70m over OM3 and 100m over OM4 multimode fiber (MMF), utilizing an MPO-8/MPO-12 parallel fiber interface.

Operating at 850nm via VCSEL transmitters and PIN receivers, this module is optimized for 100G Ethernet applications. It also offers optional support for 112G OTU4 and 128GFC protocols. For clients requiring extended short-reach connectivity, an eSR4 version capable of 300m transmission over OM4 is also available as an option.

Key Technical Highlights

• High-Speed Parallel Optics: Enables 100Gb/s aggregate bandwidth over 12-fiber parallel MPO-terminated MMF.
• Versatile Reach: Reliable transmission up to 100m (OM4) or optional 300m (eSR4).
• Broad Protocol Support: Compliant with 100GBASE-SR4, with optional OTU4 and 128GFC support.
• Proven Reliability: Utilizes advanced VCSEL technology for consistent performance in data center environments.

Product Specifications

For technical datasheets or customized eSR4 inquiries, please contact sales@szetern.com.
