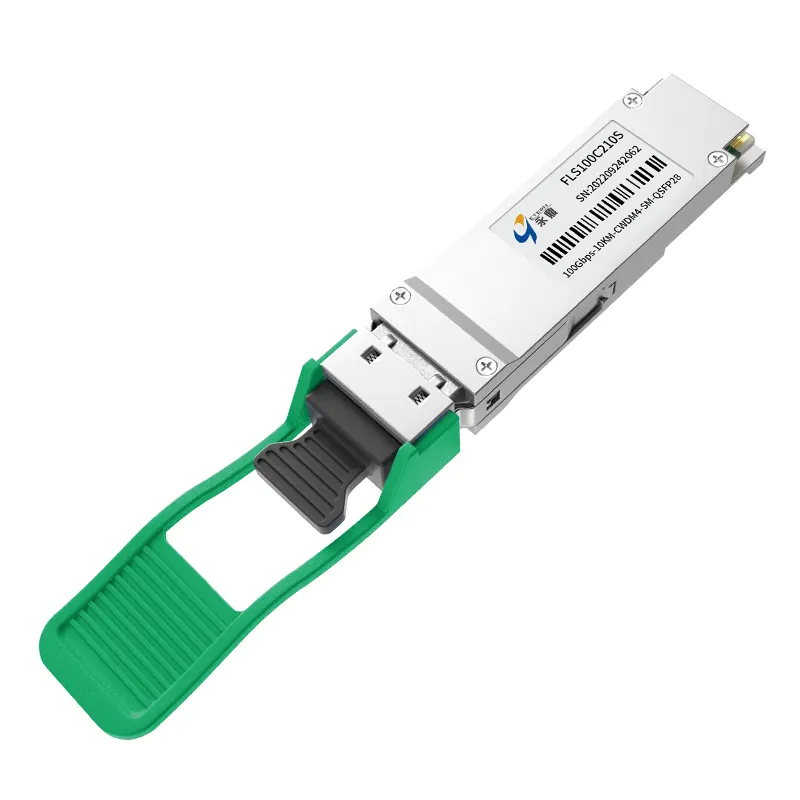

ETERN Optoelectronics 100G QSFP28 CWDM4 2km/10km Optical Transceiver
The 100G QSFP28 CWDM4 transceivers from ETERN Optoelectronics support link lengths of up to 2km (FLS100C112S) or 10km (FLS100C210S) over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors.
These modules utilize four CWDM wavelengths managed within the device to carry the 100 Gigabit Ethernet signal. Compliant with 100GBASE-CWDM4 standards, they offer high-density connectivity with optimized power efficiency for modern data center architectures.
Key Technical Highlights
- Dual Distance Support: High-performance options for both 2km and 10km reach.
- Internal MUX/DEMUX: Integrated four-wavelength CWDM design for simplified fiber cabling.
- Reliable Optical Components: Features DFB transmitters and high-sensitivity PIN receivers.
- Industry Compliance: Fully compliant with QSFP28 MSA and IEEE 802.3bm standards.
Product List & Detailed Specifications
For technical datasheets or bulk inquiries, please contact sales@szetern.com.
| Item | Specifications (2km) | Specifications (10km) |
|---|---|---|
| Part Number | FLS100C112S | FLS100C210S |
| Package | QSFP28 | QSFP28 |
| Data Rate | 100G | 100G |
| Wavelength | CWDM | CWDM |
| Reach | 2km | 10km |
| Transmitter | DFB | DFB |
| Receiver | PIN | PIN |
| TX output (dBm) | -6.5 ~ 2.5 | -6.5 ~ 2.5 |
| RX Sensitivity (dBm) | -10 | -11.5 |
| Power Consumption (W) | <3.5 | <3.5 |
| Interface | LC | LC |
| Temperature | 0℃~70℃ | 0℃~70℃ |
| Application | 100GBASE-CWDM4 | 100GBASE-CWDM4 |
