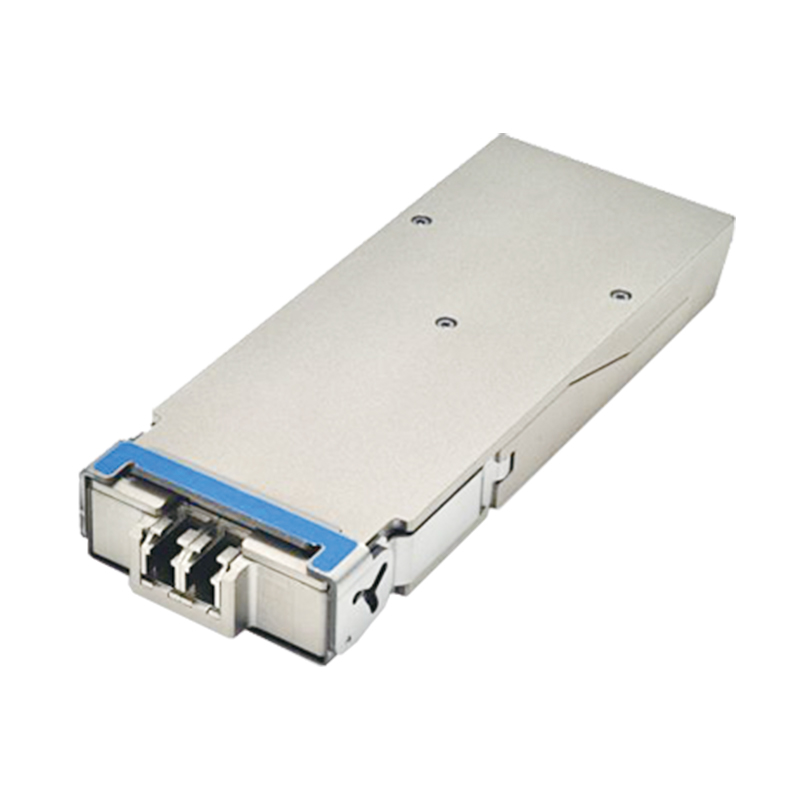

ETERN Optoelectronics 100G CFP2 LR4 10km Optical Transceiver
The FLS100C610S is a high-performance 100Gb/s CFP2 LR4 optical transceiver designed for long-reach 10km transmission over single-mode fiber (SMF). Built on the CFP2 Multi-Source Agreement (MSA), this module offers a significant reduction in size and power consumption compared to the first-generation CFP, enabling higher port density in next-generation network equipment.
Engineered for mission-critical reliability, the FLS100C610S supports aggregate data rates up to 112Gbps, providing full compatibility with 100G Ethernet and OTN OTU4 optical transport protocols. By utilizing four high-precision LAN-WDM (LWDM) EML transmitters and PIN receivers, it ensures stable signal integrity over 10km distances, delivering a robust and cost-effective solution for carrier-grade core routers and metropolitan area networks (MAN).
Key Technical Highlights
- Dual-Rate Support: Seamlessly supports 100GBASE-LR4 (103.1Gb/s) and OTU4 (111.8Gb/s) applications.
- High-Efficiency LWDM: Four LAN-WDM channels on the 1310nm window for superior dispersion management.
- Lower Power Envelope: Optimized design keeps power consumption under 6W, enhancing system thermal management.
- Standardized Reliability: Fully compliant with CFP2 MSA, IEEE 802.3ba 100GBASE-LR4, and OTU4 standards.
Technical Specifications
