Multi-fiber Push-On (MPO) connectors are high-density components engineered to consolidate multiple fibers within a single physical interface. In high-speed parallel-optics systems, precise polarity management is critical. Correct polarity ensures that transmission (Tx) paths flawlessly map to receive (Rx) paths across adapters, trunks, and cassettes—eliminating optical signal loss, data packet errors, and catastrophic link failures in 40G, 100G, 200G, 400G, and 800G fabrics.

As cloud data centers scale up to advanced multi-lane architectures (such as 100G QSFP28 SR4/PSM4, 400G QSFP-DD SR8, and 800G OSFP SR8), understanding standard routing logic becomes non-negotiable. Type A, B, and C define the three industry-standard polarity methodologies established by TIA-568 and IEC 61754-7. Below is the structural engineering breakdown for each routing array.

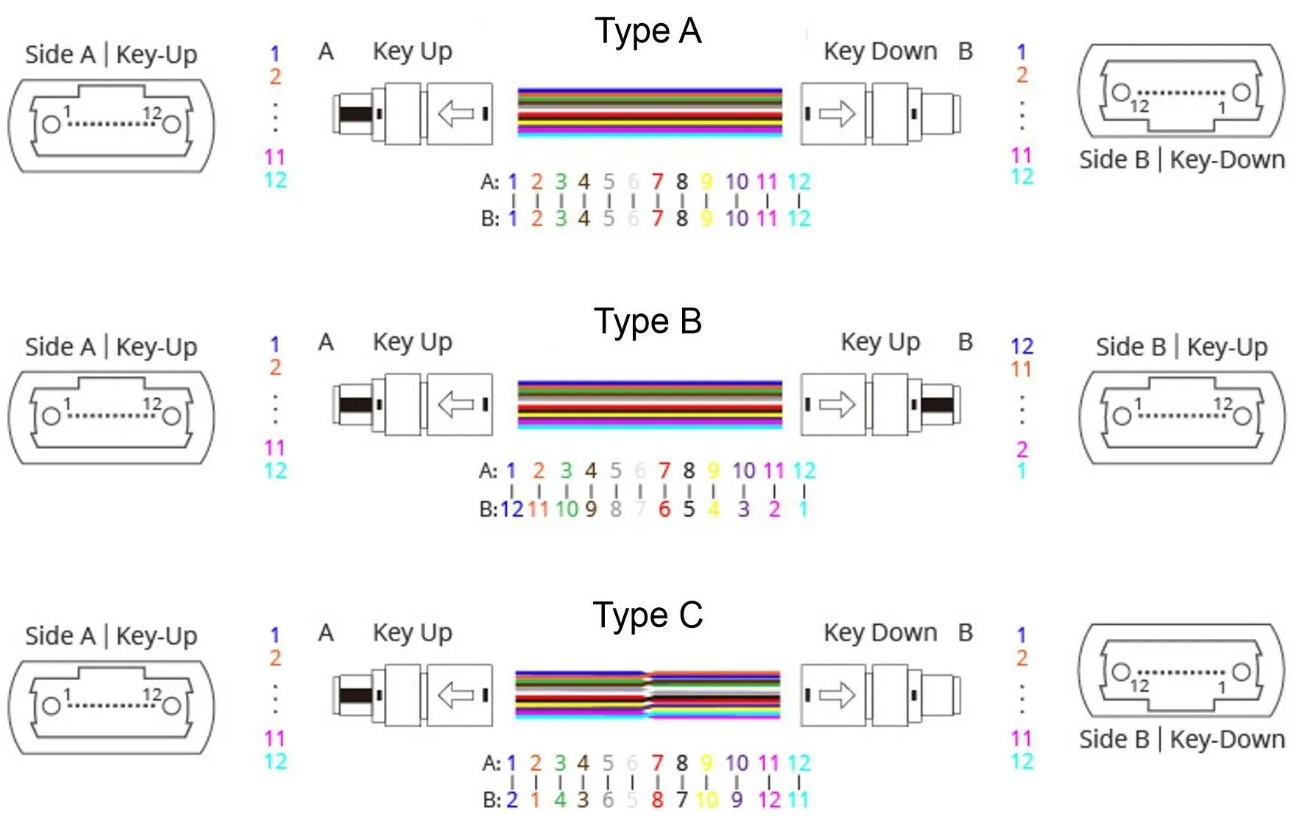

Figure 1: Comprehensive fiber routing mapping for MPO Polarity Type A, Type B, and Type C

1. Standardized MPO Polarity Methodologies

The physical orientation of the connector "Key" (Key-Up vs. Key-Down) combined with internal fiber positioning dictates the overall link behavior. Each method requires specific adapter types to maintain continuity.

Method A (Straight-Through Routing)

Method A relies on a 1:1 straight-through mapping sequence. Position 1 on the local ferrule terminates precisely at Position 1 on the remote patch end. Each individual channel remains aligned in its original numeric track across the entire link span.

• Core Mapping: Fiber 1 → Fiber 1 | Fiber 12 → Fiber 12 (No internal fiber crossovers).
• Hardware Alignment: Utilizes a Key-Up to Key-Down mating configuration (Type A Adapter).
• Primary Application: Extensively deployed in the backbone trunking layer linked to modular patch cassettes.

Method B (Crossed / Flipped Routing)

Method B uses a fully reversed array configuration. The fiber matrix is mirrored mid-span, meaning Position 1 links directly to remote Position 12, Position 2 maps to Position 11, and so forth. This effectively inverts the transmission geometry.

• Core Mapping: Fiber 1 ↔ Fiber 12 | Fiber 2 ↔ Fiber 11 (The entire array is flipped).
• Hardware Alignment: Utilizes a Key-Up to Key-Up mating configuration (Type B Adapter).
• Primary Application: Ideal for direct back-to-back links between two active parallel-optics transceivers.

Method C (Pair-Flipped Routing)

Method C introduces segment-based adjustments by crossing adjacent fiber pairs (Position 1 swaps with Position 2, Position 3 swaps with Position 4, etc.). While it balances individual duplex channels cleanly, it remains less common in ultra-high-density 400G/800G parallel trunk upgrades.

• Core Mapping: 1↔2, 3↔4, 5↔6, 7↔8, 9↔10, 11↔12 (Only localized adjacent pairs are swapped).
• Hardware Alignment: Utilizes a Key-Up to Key-Down mating configuration (Type A Adapter style).
• Primary Application: Deployed in specific MPO-to-Duplex LC breakout configurations via integrated cassettes.

2. Global Compliance & Regulatory Frameworks

To guarantee seamless multi-vendor hardware interoperability within your enterprise or hyperscale data center, Etern Optoelectronics cross-tests all MPO cabling infrastructure against international benchmarks:

• TIA-568.3-D: Optical Fiber Cabling and Components Standard (Defines standard A/B/C polarity parameters).
• TIA-604-5 (FOCIS-5): Fiber Optic Connector Intermateability Standard for MPO components.
• IEC 61754-7: International geometric definitions for the MPO connector product family.
• IEEE 802.3: Explicit multi-lane physical mapping for 40G, 100G, 200G, 400G, and 800G Ethernet layers.
• IEC 61300 Series: Rigorous fiber optic interconnecting device testing and end-face geometry inspection rules.
