Transceiver wavelength and transmission distance are critical interwoven parameters that dictate the physical reach and signal integrity of an optical network. Across the industry, it is well established that shifting operating wavelengths yields entirely different reach limits. But what is the exact physical relationship between a transceiver's wavelength and its maximum distance? Does wavelength act as a direct limiting factor, or are underlying attenuation profiles the true bottlenecks? Read this technical brief to isolate the engineering variables.

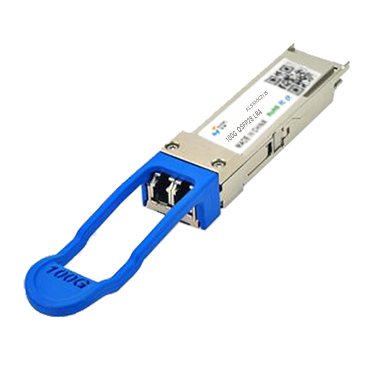

Figure 1: Etern Optoelectronics FLS100C211S 100G QSFP28 LR4 Optical Transceiver

1. The Physics: Wavelength vs. Fiber Medium Mapping

Analyzing the designated operating wavelength alongside the fiber mode is the quickest method to estimate link distance. Light traveling down an optical path is inherently bound to the physical characteristics of the glass medium, creating two distinct domains:

• Short-Wavelength Domains (Multimode Fiber - MMF): Transceivers operating near 850nm (880nm) or 910nm (940nm) pair exclusively with multimode cabling. Due to severe modal dispersion, their maximum transmission distance is physically capped (typically not exceeding 100m to 500m).
• Long-Wavelength Domains (Single-Mode Fiber - SMF): Transceivers operating at 1310nm (O-band) or 1550nm (C-band) leverage single-mode glass. Lacking inter-mode limits, they are built for long-haul transport spanning from 2km up to 40km+.

2. Degradation Variables: Dispersion and Fiber Attenuation

As light pulses traverse an optical core, they experience degradation via two primary vectors: dispersion (waveform spreading) and insertion loss (signal attenuation).

Chromatic & Modal Dispersion: Single-mode fibers eliminate modal dispersion because they carry a single spatial mode. Multimode fibers, conversely, support multiple light paths that refract repeatedly down the core, leading to modal pulse-spreading. Excessive dispersion causes overlapping pulses (intersymbol interference), drastically shortening the transceiver’s maximum reach.

Insertion & Attenuation Loss: Rayleigh scattering and material absorption cause intrinsic light loss that varies heavily by wavelength. The attenuation curve follows a downward slope from short to long wavelengths: 850nm > 1310nm > 1550nm. Over standard G.652D single-mode fiber (the global enterprise infrastructure benchmark), typical attenuation constants are allocated as follows:

• At 1310nm (O-Band): Attenuation is approximately 0.35 dB/km.
• At 1550nm (C-Band): Attenuation drops to approximately 0.22 dB/km (the minimum loss window).

Figure 2: Physical Attenuation Curve (Wavelength vs. Loss per Kilometer in Silica Fiber)

3. Industry Standard Compliance (IEEE 802.3ba Example)

Commercial deployments must strictly align with institutional definitions rather than ideal lab baselines. For example, under the IEEE 802.3ba standard for 100GBASE-LR4 (10km over SMF), link power budgets are formalized with built-in margins:

• Total Optical Power Budget: Established at 8.5 dB.
• Maximum Channel Insertion Loss: Allocated at 6.3 dB (accounting for wavelength attenuation, splice points, and standard patch panel degradation in production networks).

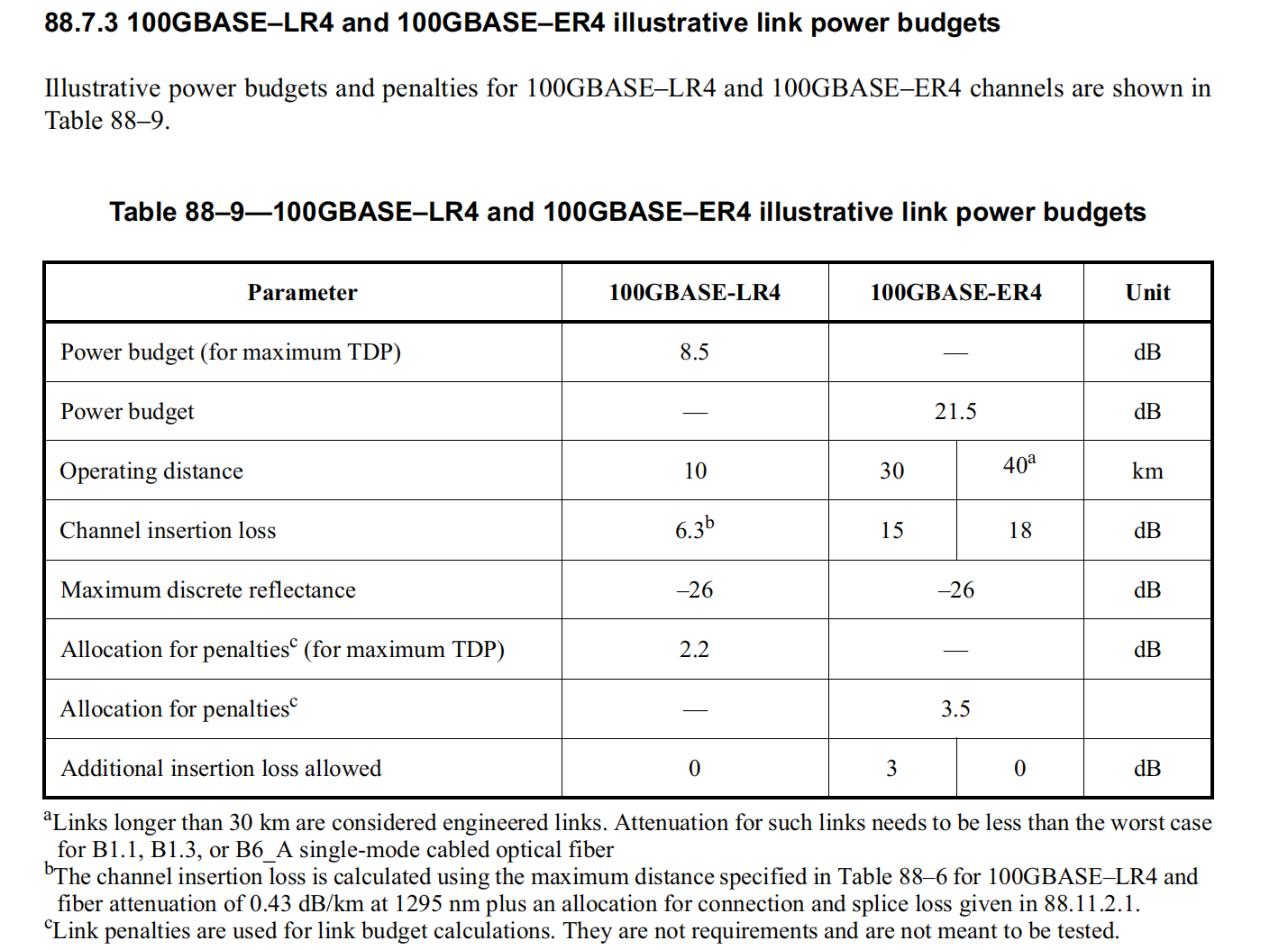

Figure 3: Power Budget Allocation Framework for 100GBASE-LR4 under IEEE 802.3ba Protocols

4. Mathematical Calculation of Optical Link Reach

Before engineering a network link, launch power and receive sensitivity must be evaluated logarithmically. Optical launch power represents absolute intensity, typically quantified in milliwatts (mW) or translated to decibel-milliwatts (dBm) via the following logarithmic expression:

P_(dBm) = 10 · log₁₀( P_(mW) / 1 mW )

Optical communication channels enforce Bit Error Rate (BER) parameters to guarantee path viability. Measuring the actual hardware power budget dictates how much loss the link can withstand before hitting the photodetector threshold. In lower-rate or dispersion-managed links, the baseline mathematical model is structured as follows:

Power Budget (dB) = Minimum TX_Px (dBm) - Maximum RX_sens (dBm)

Where TX_Px represents the Average Launch Power per Lane of the Transmitter, and RX_sens represents the Average Receiver Sensitivity per Lane of the Receiver.

Engineering Note: Why must we calculate using the Minimum launch power and Maximum (worst) sensitivity? Hardware components exhibit slight performance variations across manufacturing batches and inevitably degrade over their operational lifecycle. Factoring in worst-case parameters separates commercial network reliability from academic lab experiments.

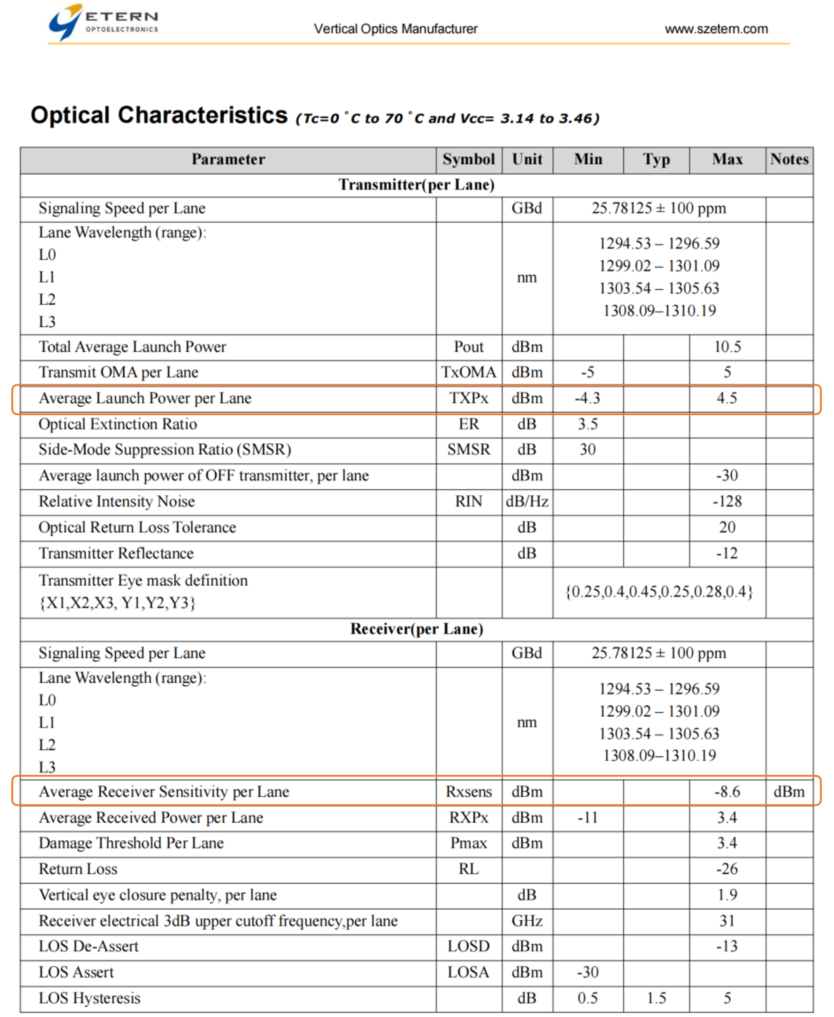

Figure 4: Factory Specification Sheet for Etern Optoelectronics' 100G QSFP28 LR4

Real-World Scenario: 100G QSFP28 LR4 Link Budget Calculation

Etern’s 100G QSFP28 LR4 optics operate in the 1310nm LAN-WDM grid. Reviewing the hardware specifications in Figure 4, the minimum average launch power (TX_Px) is -4.3 dBm and the maximum receiver sensitivity (RX_sens) is -8.6 dBm. Plugging these values into our verified model:

Power Budget = -4.3 dBm - (-8.6 dBm) = 4.3 dB

With a worst-case power budget of 4.3 dB, and considering real-world G.652 SMF fiber attenuation characteristics at 1310nm, this architecture reliably satisfies a 10km link deployment baseline, satisfying the 100GBASE-LR4 standard framework. (Note: Performance standards are verified using a PRBS 2³¹-1 test pattern @ 25.78125 Gb/s with a target BER ≤ 1 × 10^-12).

To ensure total deployment safety, path design must always account for system safety margins, aging fiber variance, mechanical splice loss, and connector degradation. While theoretical boundaries provide the baseline, Etern Optoelectronics enforces rigorous factory screening thresholds that exceed IEEE minimums, ensuring that production shipments deliver substantial operating head-room for high-loss environments.
