In the era of exploding data demands, hyperscale data centers and telecom networks require a connectivity backbone that flawlessly blends speed, reliability, and architectural scalability. Introducing the 400G QSFP-DD LR8 optical transceiver—your ultimate solution for seamless 10km long-haul transmission at 400Gbps, meticulously engineered to power the next generation of high-density network infrastructure.

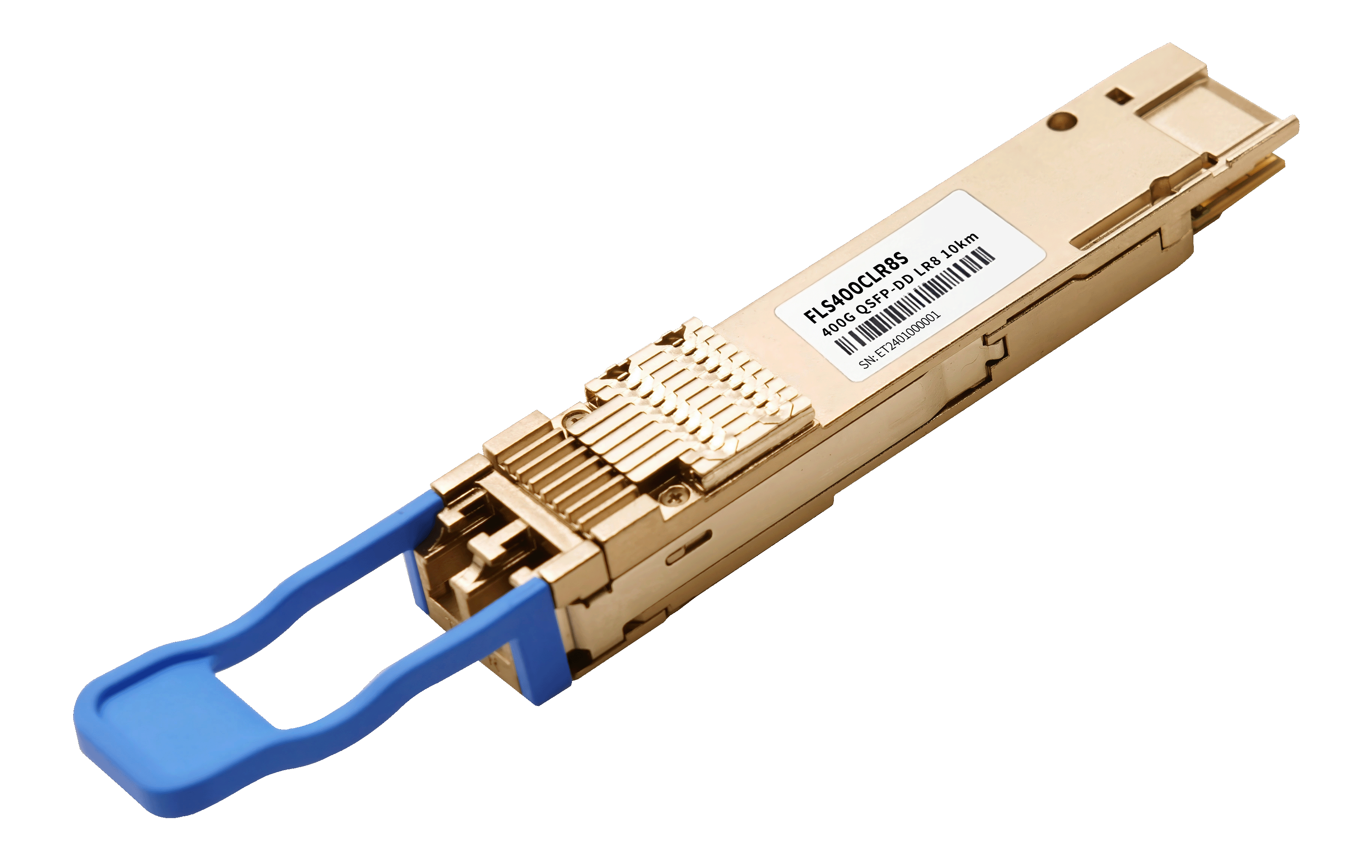

Figure 1: Etern Optoelectronics FLS400CLR8S 400G QSFP-DD LR8 Optical Transceiver

1. Universal Interoperability & Seamless Compatibility

At the core of this transceiver lies a physical design built for multi-vendor network integration. Fully compliant with the QSFP-DD MSA and IEEE 802.3cn 400GBASE-LR8 standards, it eliminates compatibility bottlenecks, seamlessly cross-operating with mainstream industry models such as QDD-400G-LR8-S and QDD-400G-LR8. Whether upgrading legacy switching fabrics or provisioning greenfield architectures, this module ensures plug-and-play simplicity to mitigate deployment risk and operational disruptions.

Its hot-pluggable 76-pin electrical interface adds another layer of operational convenience. It allows network administrators to execute quick installations, line-card upgrades, and replacements without powering down the host system—a critical prerequisite for maintaining 24/7 network uptime in mission-critical cloud routing environments.

2. Advanced Modulation & Optical Specifications

Powered by a cutting-edge 8-lane parallel optics engine, the 400G QSFP-DD LR8 leverages high-order 50Gbps PAM4 modulation on both the electrical and optical interfaces, yielding a blistering aggregate maximum bit rate of 425Gbps. This architecture strikes the ideal balance between low latency thresholds and unwavering link reliability, ensuring smooth packet data flow for bandwidth-heavy applications like ultra-scale cloud computing, 5G mobile backhaul aggregation, and high-performance computing (HPC) AI fabrics.

Equipped with an integrated 8-channel LAN-WDM (LWDM8) MUX/DEMUX optical assembly and industry-standard dual LC duplex receptacles, the transceiver operates over the ultra-stable 1310nm O-band grid optimized for long-haul chromatic dispersion limits. Supported by host-side Forward Error Correction (FEC), it achieves an incredibly stable 10km reach over standard single-mode fiber (SMF). This makes it the go-to component for data center interconnects (DCI), metro network rings, and regional telecom aggregation hubs.

3. Low Power Consumption & Intelligent Diagnostic Tracking

Engineered to thrive in real-world deployment conditions, this module operates flawlessly within a commercial temperature range of 0°C to 70°C. It ensures consistent, unthrottled optical performance across diverse thermal environments—from heavily cooled enterprise data center aisles to unconditioned outdoor telecom cabinets. Furthermore, its optimized maximum power consumption of **just 14.5W** pairs premium throughput with highly efficient thermal dissipation, helping operators slash cumulative OPEX and rack-cooling overhead.

For comprehensive network layer visibility, the module features built-in Digital Diagnostic Monitoring (DDM) via the standard I2C interface. This architecture provides real-time, high-precision telemetry for critical parameters including TX/RX optical power, operating temperature, laser bias current, and supply voltage. Proactive monitoring capabilities like this empower network administrators to detect anomalies, isolate path degradation, and resolve link budgets before bit error rates impact SLA performance.

4. Proven Reliability: Ready for Hyperscale Mass Deployment

As a fully mass-produced, vertically integrated optical solution from Etern Optoelectronics, the FLS400CLR8S has proven its rigorous stability in active production lines globally. Its hardened optoelectronic design, strict multi-protocol compliance, and cross-vendor interoperability make it a trusted choice for organizations looking to future-proof their network fabrics against next-generation traffic demands. Whether you are provisioning a high-speed data center interconnect, scaling 5G backhaul paths, or optimizing metro core networks, the 400G QSFP-DD LR8 delivers the speed, reach, and structural dependability your infrastructure demands.
