When planning enterprise Data Center Interconnect (DCI) or edge telecom backbones, network architects consistently face a heavy CAPEX challenge: How do you drive 100G traffic across an 80km long-haul span without adding costly, complex external amplification (like EDFA) or active DWDM transponder platforms?

Traditional ultra-long-haul transport requires spinning up a heavy active optical layer fabric, which inflates both initial capital investment and ongoing operational overhead (OPEX). Migrating to a high-density, plug-and-play 100G QSFP28 ZR4 solution offers a leaner, "de-coupled" option that removes the active wave-shelf entirely. This article breaks down the physical-layer engineering logic and deployment boundaries for closing an 80km link with zero external amplification.

1. The Edge Long-Haul Challenge: Attenuation and Dispersion Limits

Extending 100G optical lines past 40km toward an 80km baseline forces the physical layer to contend with a dual-front penalty: severe optical power attenuation and cumulative chromatic dispersion.

• Attenuation Constraints: Standard G.652 single-mode fiber (SMF) exhibits a fixed loss profile per kilometer. To sustain a link over 80km, the operating wavelengths must sit squarely within the low-loss C-band or a tightly spaced LAN-WDM grid to prevent the signal from dropping into the noise floor.
• Dispersion Penalties: As the reach scales, optical pulses widen chronologically along the fiber core, inducing severe Inter-Symbol Interference (ISI). If the transceiver’s internal laser lacks high spectral purity, the Pre-FEC Bit Error Rate (BER) will breach the host switch's error-correction thresholds, resulting in flapping links or outright link-up failure.

2. The Hardware Solution: High-Power Launch Coupled with Integrated Receive Amplification

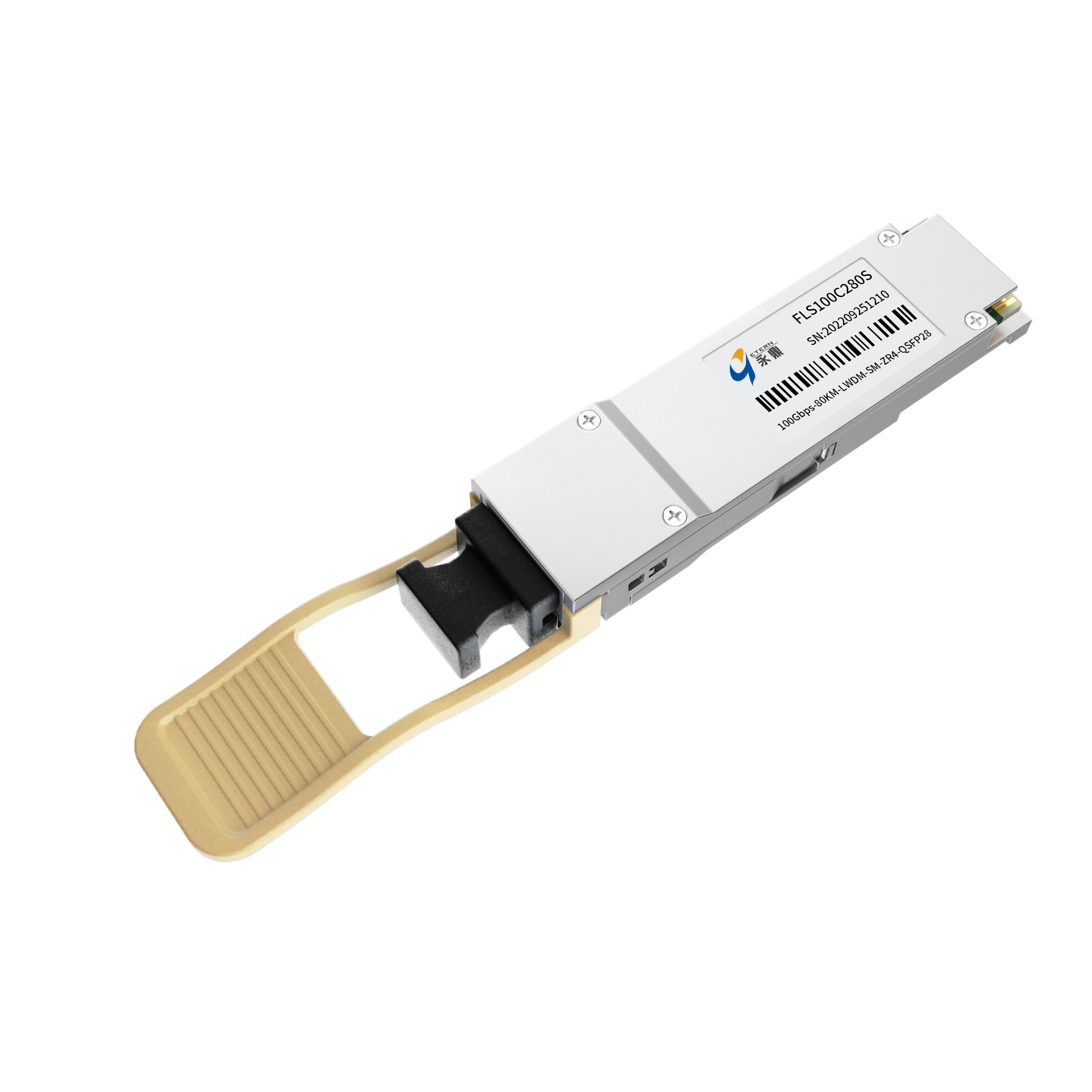

To achieve zero-touch deployment over an 80km G.652 single-mode link, the 100G QSFP28 ZR4 (Model: FLS100C280S) implements a closed-loop hardware architecture on both the transmit and receive paths:

Transmitter Path: Cooled 4×25G LAN-WDM EML Lasers
Standard short-reach modules use uncooled DML lasers, which suffer from a severe "chirp effect" under high-speed, long-haul modulation. This broadens the spectrum and causes dispersion to spike. The ZR4 design bypasses this by integrating internally cooled Electro-Absorption Modulated Lasers (EML). This ensures narrow spectral linewidths operating near the zero-dispersion grid, crushing the dispersion penalty at the source. Individual lane launch power is maintained between +2 dBm and +6.5 dBm, guaranteeing high initial photon density.

Receiver Path: PIN Detectors + Integrated Semiconductor Optical Amplifier (SOA)
After traversing 80km of glass, the arriving optical wavefront is heavily attenuated—often too faint for standard PIN or APD components to resolve. The ZR4 module resolves this by embedding an internal SOA (Semiconductor Optical Amplifier) acting as a pre-amplifier right before the detector stage. The weak incoming signal is boosted directly in the optical domain before being handed off to the PIN array for O/E conversion. Working alongside the host switch's Forward Error Correction, this achieves an industry-leading receiver sensitivity of -28 dBm.

3. Field Link Engineering: Aligning the 80km Loss Budget

When transport engineers audit a link for production handoff, they rely on clean power-budget math over complex equations. Let’s map out the definitive optical metrics of the FLS100C280S scheme:

• Minimum Launch Power per Lane: +2.0 dBm
• Maximum Receiver Sensitivity Threshold: -28.0 dBm
• Total Available Optical Power Budget: +2.0 dBm - (-28.0 dBm) = 30.0 dB

In production field deployments, a standard 80km single-mode fiber span containing typical fiber attenuation, ODF patch-panel insertion loss, and multiple legacy inline fusion splices typically amasses an aggregate path loss ranging between 26 dB and 27 dB.

Engineering Verdict: Subtracting the 27 dB path loss from the available 30 dB hardware budget leaves a safe margin of roughly 3.0 dB. This safety cushion easily accounts for future fiber aging, macro-bending from handling, or long-term laser diode degradation. The link remains structurally stable over its lifecycle without requiring an external inline EDFA bay.

4. Architecture Alignment: LR4 vs ER4 vs ZR4 Selection Matrix

During procurement cycles or infrastructure expansions, the selection boundaries for 100G modules are straightforward based on target span lengths:

5. Field Deployment Best Practices & Pitfall Mitigation

When deploying 100G QSFP28 ZR4 links in live production lines, keep these two critical field rules in mind:

• Host-FEC Provisioning is Mandatory: The ZR4’s ultra-deep -28 dBm receiver sensitivity is mathematically tied to an active Pre-FEC BER @5E-5 threshold. If Forward Error Correction (FEC) is disabled on the host switch port profile, the link will either fail to come up or encounter immediate, severe packet drop.
• Strict Prohibition of Short-Span Loopback Testing: Because the ZR4 emits an aggregate launch power up to +12.5 dBm and relies on an internal SOA pre-amplifier, you must insert a high-dB fixed inline optical attenuator during lab staging or short-span (<20km) provisioning. Forcing unattenuated, high-density photon streams directly into the optics will instantly overdrive the receiver, resulting in permanently burned modules.
